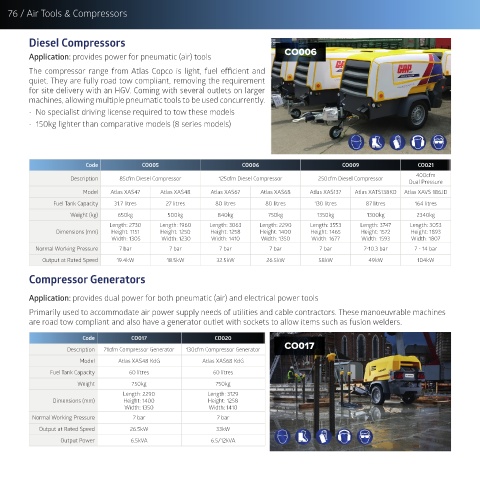

76 / Air Tools & Compressors

Diesel Compressors

Application: provides power for pneumatic (air) tools CO006
The compressor range from Atlas Copco is light, fuel efficient and
quiet. They are fully road tow compliant, removing the requirement
for site delivery with an HGV. Coming with several outlets on larger
machines, allowing multiple pneumatic tools to be used concurrently.
• No specialist driving license required to tow these models
• 150kg lighter than comparative models (8 series models)

Code CO005 CO006 CO009 CO021
Description 85cfm Diesel Compressor 125cfm Diesel Compressor 250cfm Diesel Compressor 400cfm
Dual Pressure
Model Atlas XAS47 Atlas XAS48 Atlas XAS67 Atlas XAS68 Atlas XAS137 Atlas XATS138KD Atlas XAVS 186JD
Fuel Tank Capacity 31.7 litres 27 litres 80 litres 80 litres 130 litres 87 litres 164 litres
Weight (kg) 650kg 500kg 840kg 750kg 1350kg 1300kg 2340kg
Length: 2730 Length: 1960 Length: 3063 Length: 2290 Length: 3553 Length: 3747 Length: 3053
Dimensions (mm) Height: 1151 Height: 1250 Height: 1258 Height: 1400 Height: 1465 Height: 1572 Height: 1893
Width: 1305 Width: 1230 Width: 1410 Width: 1350 Width: 1677 Width: 1593 Width: 1807
Normal Working Pressure 7 bar 7 bar 7 bar 7 bar 7 bar 7-10.3 bar 7 - 14 bar
Output at Rated Speed 19.4kW 18.5kW 32.5kW 26.5kW 58kW 49kW 104kW
Compressor Generators

Application: provides dual power for both pneumatic (air) and electrical power tools

Primarily used to accommodate air power supply needs of utilities and cable contractors. These manoeuvrable machines
are road tow compliant and also have a generator outlet with sockets to allow items such as fusion welders.

Code CO017 CO020
Description 71cfm Compressor Generator 130cfm Compressor Generator CO017
Model Atlas XAS48 KdG Atlas XAS68 KdG
Fuel Tank Capacity 60 litres 60 litres
Weight 750kg 750kg
Length: 2290 Length: 3129
Dimensions (mm) Height: 1400 Height: 1258
Width: 1350 Width: 1410
Normal Working Pressure 7 bar 7 bar
Output at Rated Speed 26.5kW 33kW
Output Power 6.5kVA 6.5/12kVA
