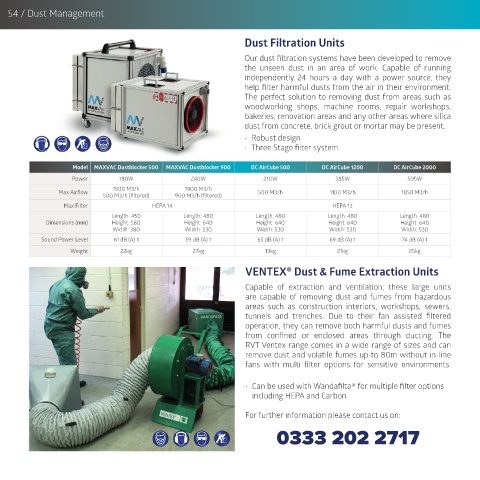

Page 56 - Full GAP Catalogue 2022
P. 56

54 / Dust Management


                                                              Dust Filtration Units

                                                              Our dust filtration systems have been developed to remove
                                                              the unseen dust in an area of  work. Capable of running
                                                              independently 24 hours a day with a power source, they
                                                              help filter harmful dusts from the air in their environment.
                                                              The perfect solution to removing dust from areas such as
                                                              woodworking shops, machine rooms, repair  workshops,
                                                              bakeries, renovation areas and any other areas where silica
                                                              dust from concrete, brick grout or mortar may be present.
                                                              •  Robust design
                                                              •  Three Stage filter system

                   Model  MAXVAC Dustblocker 500  MAXVAC Dustblocker 900  DC AirCube 500  DC AirCube 1200  DC AirCube 2000
                   Power       180W             240W              210W              385W              505W
                Max Airflow  1500 M3/h         1900 M3/h         500 M3/h          1100 M3/h         1850 M3/h
                           500 M3/h (filtered)  900 M3/h (filtered)
                 Max Filter            HEPA 14                                     HEPA 13
                             Length: 450       Length: 480      Length: 480       Length: 480       Length: 480
            Dimensions (mm)  Height: 580       Height: 640       Height: 640      Height: 640       Height: 640
                             Width: 380        Width: 530        Width: 530        Width: 530        Width: 530
           Sound Power Level  61 dB (A) 1      59 dB (A) 1       65 dB (A) 1       69 dB (A) 1       74 dB (A) 1
                   Weight      22kg              27kg              13kg              21kg             25kg

                                                                        ®
                                                              VENTEX  Dust & Fume Extraction Units
                                                              Capable of extraction and  ventilation,  these large units
                                                              are capable of removing dust and fumes from hazardous
                                                              areas such as construction interiors,  workshops, sewers,
                                                              tunnels  and trenches.  Due to their  fan  assisted  filtered
                                                              operation, they can remove both harmful dusts and fumes
                                                              from confined or enclosed areas  through ducting.  The
                                                              RVT Ventex range comes in a wide range of sizes and can
                                                              remove dust and volatile fumes up to 80m without in-line
                                                              fans  with multi  filter options  for sensitive environments.

                                                              •  Can be used with Wandafilta® for multiple filter options
                                                                including HEPA and Carbon


                                                              For further information please contact us on:
                                                                      0333 202 2717
