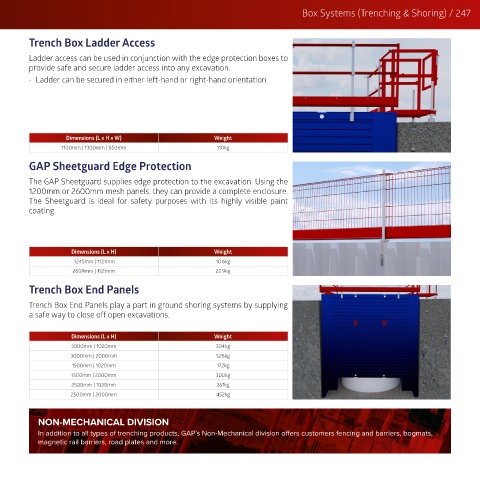

Box Systems (Trenching & Shoring) / 247
Trench Box Ladder Access
Ladder access can be used in conjunction with the edge protection boxes to
provide safe and secure ladder access into any excavation.
• Ladder can be secured in either left-hand or right-hand orientation
Dimensions (L x H x W) Weight
1100mm | 1300mm | 850mm 110kg
GAP Sheetguard Edge Protection
The GAP Sheetguard supplies edge protection to the excavation. Using the
1200mm or 2600mm mesh panels, they can provide a complete enclosure.
The Sheetguard is ideal for safety purposes with its highly visible paint
coating.
Dimensions (L x H) Weight
1245mm | 1121mm 10.6kg
2609mm | 1121mm 22.9kg
Trench Box End Panels
Trench Box End Panels play a part in ground shoring systems by supplying
a safe way to close off open excavations.
Dimensions (L x H) Weight
3000mm | 1020mm 304kg
3000mm | 2000mm 526kg
1500mm | 1020mm 172kg
1500mm | 2000mm 300kg
2500mm | 1020mm 261kg
2500mm | 2000mm 452kg
NON-MECHANICAL DIVISION
In addition to all types of trenching products, GAP’s Non-Mechanical division offers customers fencing and barriers, bogmats,
magnetic rail barriers, road plates and more.
