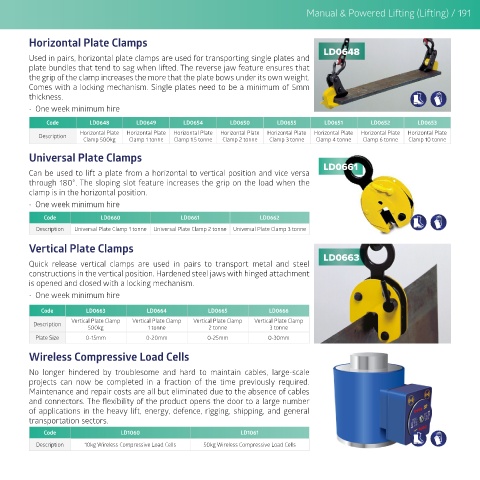

Manual & Powered Lifting (Lifting) / 191

Horizontal Plate Clamps LD0648

Used in pairs, horizontal plate clamps are used for transporting single plates and
plate bundles that tend to sag when lifted. The reverse jaw feature ensures that
the grip of the clamp increases the more that the plate bows under its own weight.
Comes with a locking mechanism. Single plates need to be a minimum of 5mm
thickness.
• One week minimum hire
Code LD0648 LD0649 LD0654 LD0650 LD0655 LD0651 LD0652 LD0653
Horizontal Plate Horizontal Plate Horizontal Plate Horizontal Plate Horizontal Plate Horizontal Plate Horizontal Plate Horizontal Plate
Description
Clamp 500kg Clamp 1 tonne Clamp 1.5 tonne Clamp 2 tonne Clamp 3 tonne Clamp 4 tonne Clamp 6 tonne Clamp 10 tonne
Universal Plate Clamps
LD0661
Can be used to lift a plate from a horizontal to vertical position and vice versa
through 180°. The sloping slot feature increases the grip on the load when the
clamp is in the horizontal position.
• One week minimum hire
Code LD0660 LD0661 LD0662
Description Universal Plate Clamp 1 tonne Universal Plate Clamp 2 tonne Universal Plate Clamp 3 tonne
Vertical Plate Clamps LD0663

Quick release vertical clamps are used in pairs to transport metal and steel
constructions in the vertical position. Hardened steel jaws with hinged attachment
is opened and closed with a locking mechanism.
• One week minimum hire

Code LD0663 LD0664 LD0665 LD0666
Vertical Plate Clamp Vertical Plate Clamp Vertical Plate Clamp Vertical Plate Clamp
Description
500kg 1 tonne 2 tonne 3 tonne
Plate Size 0-15mm 0-20mm 0-25mm 0-30mm
Wireless Compressive Load Cells

No longer hindered by troublesome and hard to maintain cables, large-scale
projects can now be completed in a fraction of the time previously required.
Maintenance and repair costs are all but eliminated due to the absence of cables
and connectors. The flexibility of the product opens the door to a large number
of applications in the heavy lift, energy, defence, rigging, shipping, and general
transportation sectors.
Code LD1060 LD1061
Description 10kg Wireless Compressive Load Cells 50kg Wireless Compressive Load Cells
